True No-Mix Open-Cell Spray Foam — Now with 15% More Yield

Get More with DRAGON XL— More Yield, More Trust, More Results

QUIK-SHIELD® DRAGON XL builds on the trusted performance of the original DRAGON open-cell spray foam. It delivers the same consistent results with 15% more yield — helping you get more out of every set. With a true no-mix formulation, QUIK-SHIELD® DRAGON XL sprays clean, adheres strong, and performs reliably in real-world job conditions.

Download Technical QUIK-SHIELD® DRAGON XL Documents

SWD Dragon XL logo

Why QUIK-SHIELD® DRAGON XL:

  • More Yield
    Up to 15% higher yield means fewer drum sets and more coverage per job.
  • More Reliability
    The same smooth spray and dependable performance that made DRAGON a contractor favorite.
  • More Confidence
    Proven adhesion, low odor, and easy sprayability — so you can focus on the work, not the foam.
  • More Safety
    NPE-free and very low odor for a cleaner, more comfortable jobsite environment.

Key Specs at a Glance:



Property Value
Formulation True No-Mix
Odor Very Low
Nominal Density 0.45 pcf
Average Board Feet 19,000 bdft
Temperature Settings 120-145°F
Rise Time 4-4.25 seconds
Sprayability Easy to dial in- set & forget
Adhesion Excellent
Max Lift 12”
NPE-Free  Yes

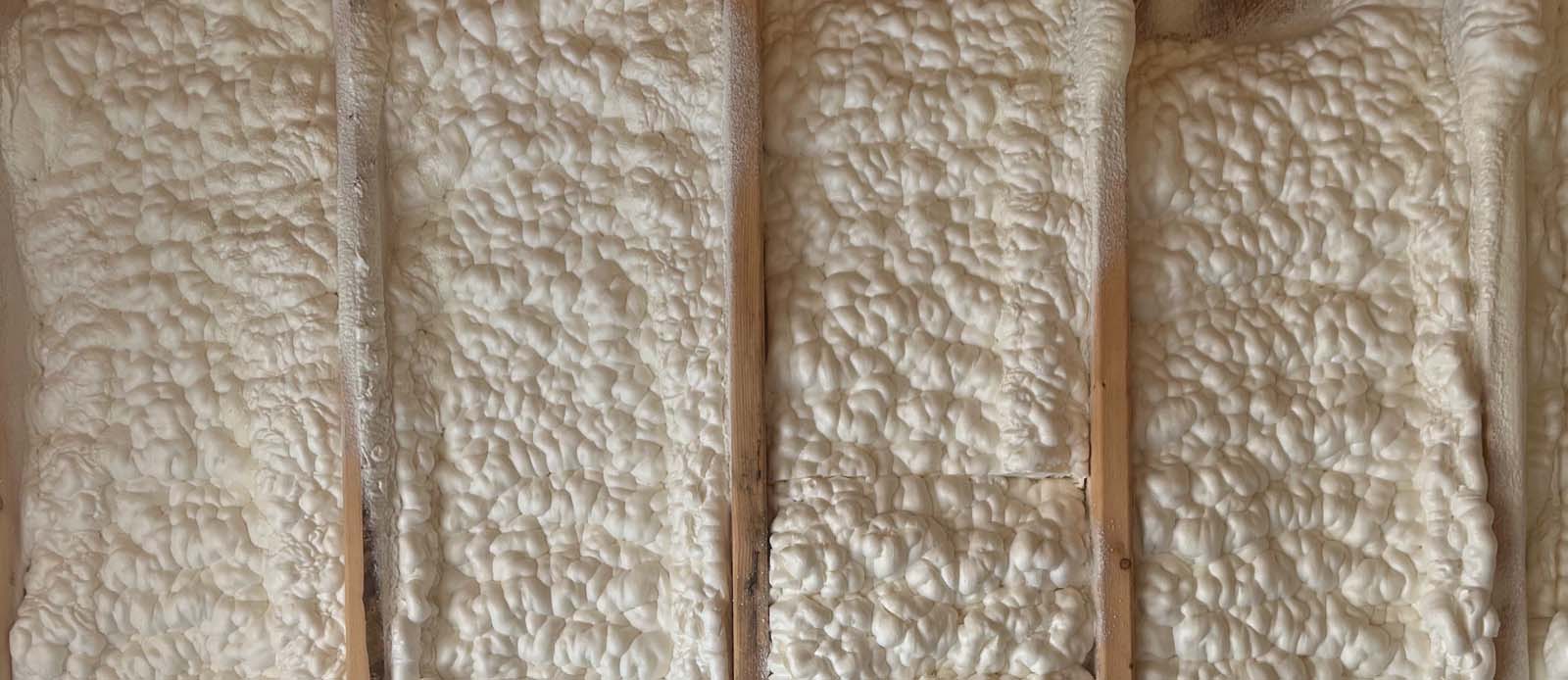

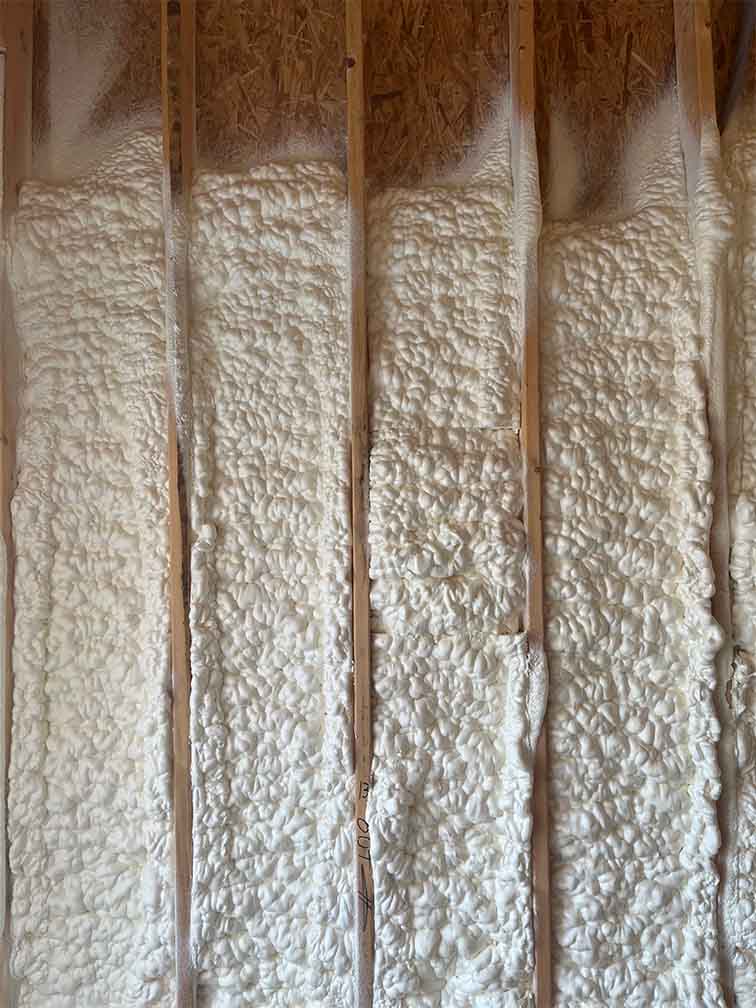

Close-up detail of Quik-Shield Dragon XL spray foam insulation showing smooth, dense closed-cell structure for optimized thermal performance.
Technician applying Quik-Shield Dragon XL spray foam insulation between wall studs in a residential structure using professional spray equipment.

Application Conditions:

Substrates must be clean, dry, and properly prepped. Use high-pressure plural-component equipment with a dynamic pressure of at least 1000 psi. Recommended application range is ½″ to 2″ per pass, reaching full system thickness same day. Drums should be preconditioned to 70–80°F. Always follow SWD’s equipment, prep, and ventilation guidelines.

Where It Works:

  • Interior walls and ceilings

  • Unvented attic assemblies

  • Residential and commercial construction

  • Projects targeting GREENGUARD® Gold or low-emission certification

  • Code-required air barrier assemblies

  • Jobs requiring fast setup and minimal maintenance

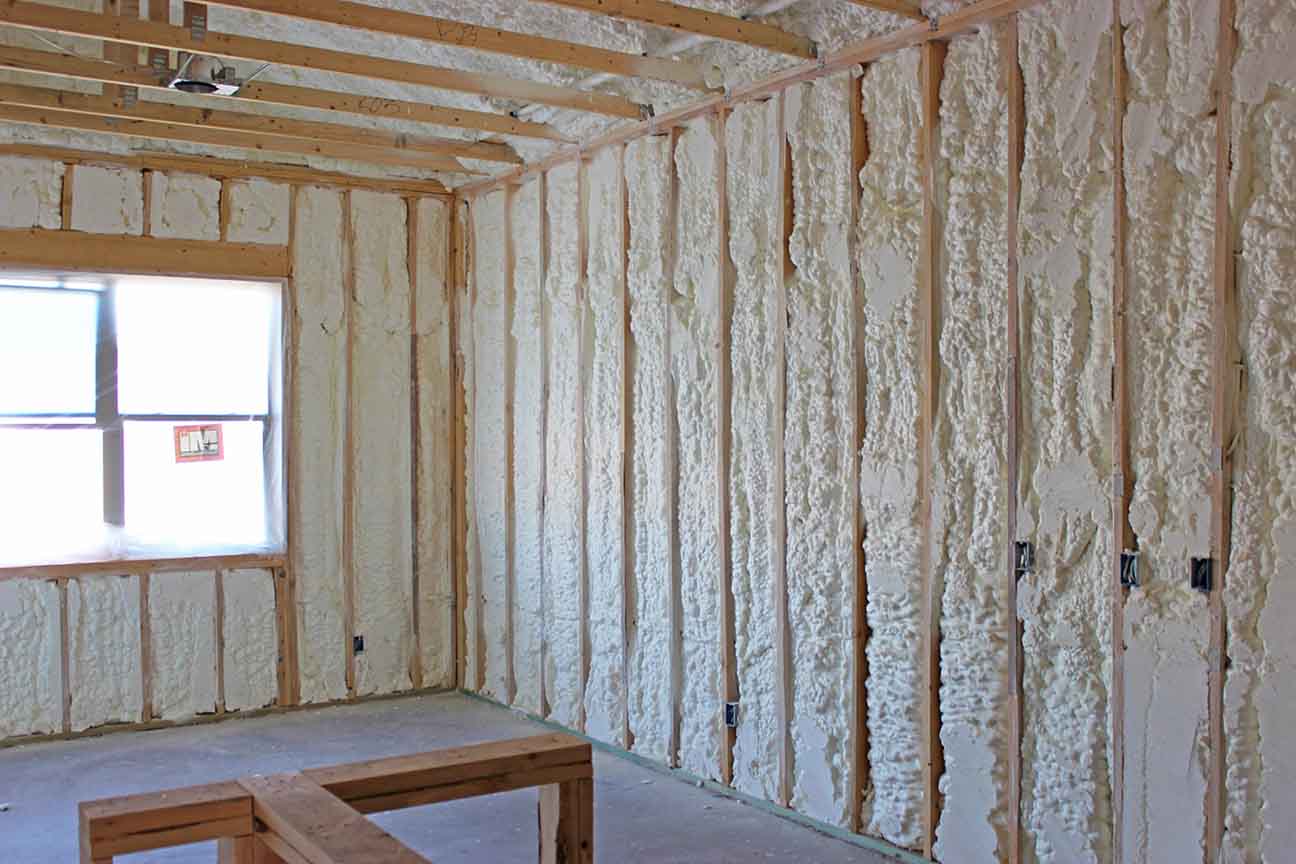

Interior residential walls fully insulated with Quik-Shield Dragon XL closed-cell spray foam, providing airtight and energy-efficient coverage.

A Product That Reflects Our Values

If you haven’t sprayed QUIK-SHIELD® DRAGON yet, you haven’t experienced true no-mix performance. DRAGON XL continues the DRAGON reputation for reliability — with the same trusted formula, now refined for 15% higher yield, strong adhesion, and smoother spraying. It’s not just a refined formula — it’s continued proof that when we listen to our customers, we build products that work harder, last longer, and keep the job moving.

Need Support or Have Questions?

Our technical team is just a call away. We’re with you from bid to build.

CALL: 888-380-2022
