No-Mix Open-Cell Spray Foam for Consistent, Fast Application
All Performance. No Hassle. Just Spray.
QUIK-SHIELD® DRAGON is an open-cell spray foam insulation formulated for smooth, consistent sprayability—without the need to mix before or during application. With a 0.5 lb/ft³ nominal density and R-3.9 per inch, DRAGON delivers reliable thermal and air barrier performance for residential and commercial builds alike. It’s GREENGUARD® Gold certified and free of emissive catalysts, making it both installer- and occupant-friendly.
Download Technical Quik-Shield® DRAGON Documents
Why Quik-Shield® DRAGON:
- No Mixing Required
DRAGON’s ready-to-spray formulation speeds up setup and minimizes hassle on the jobsite. - Smooth, Predictable Application
Ideal for pros who value consistent pass thickness, adhesion, and spray behavior. - Air Barrier Performance + Green Credentials
Meets high-performance code requirements and indoor air quality standards.
Key Specs at a Glance:
| Property | Value |
|---|---|
| Base | Open-Cell Polyurethane |
| Core Density | 0.5 lb/ft³ |
| R-Value | 3.9 @ 1″ (3.7/inch at ≥3.5″) |
| Viscosity | A: 200 ± 100 cP / B: 300 ± 100 cP |
| Weight per Gallon | A: 1.25 / B: 1.06 (specific gravity) |
| Color | White Cream (liquid) |
| Packaging | 275-gal tote, 55-gal drum |
Application Conditions:

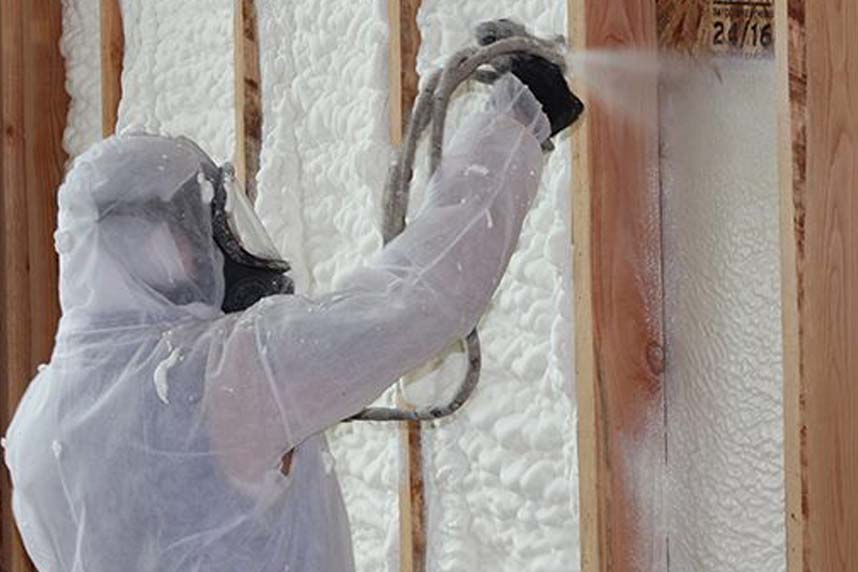

Substrates must be clean, dry, and properly prepped. Use high-pressure plural-component equipment with a dynamic pressure of at least 1000 psi. Recommended application range is ½″ to 2″ per pass, reaching full system thickness same day. Drums should be preconditioned to 70–80°F. Always follow SWD’s equipment, prep, and ventilation guidelines.
Where It Works:
QUIK-SHIELD® DRAGON is especially suited for pros who prioritize efficiency without compromising on quality. It’s a reliable solution for high-volume spray days, tough access areas, or crews who need to move quickly from bid to build.
Need Support or Have Questions?
Our technical team is just a call away. We’re with you from bid to build.
