Closed-Cell Roofing Foam That Builds Strength and Seals Tight

High-Density, Low GWP Foam for Durable, Seamless Protection

QUIK-SHIELD® 155-3 is a closed-cell, spray-applied polyurethane roofing foam that creates a monolithic, water-resistant barrier while delivering impressive insulation and uplift strength. With high compressive strength, low air leakage, and excellent adhesion to a wide range of substrates, this 3.0 lb. density foam is engineered for long-term performance—without seams, mechanical fasteners, or environmental trade-offs. It also meets California and Washington Low GWP mandates and contributes toward LEED credits.

Bird’s-eye view of a new retail plaza; each building is topped with reflective SWD Urethane spray foam roofing.

Why Quik-Shield® 155-3:

  • Low Global Warming Potential (GWP)
    Meets strict environmental mandates with a blowing agent formulation that’s HFC-free and eco-conscious.
  • Class A/B Fire-Rated Assemblies
    ICC ESR-2532 evaluated and UL 790 tested for performance across multiple substrates and slope configurations.
  • Exceptional Structural Performance
    Delivers up to 165 psf of wind uplift resistance and strong adhesion to wood, metal, and concrete.

Key Specs at a Glance:

Property Value
Base Closed-Cell Polyurethane
Core Density (Nominal) 2.8 lb/ft³
Compressive Strength 50 psi
Viscosity A: 250 ± 50 cP / B: 800 ± 50 cP
Weight per Gallon A: 1.23 / B: 1.17 (specific gravity)
Color Yellow (not color-stable)
Packaging 275-gal tote, 55-gal drum

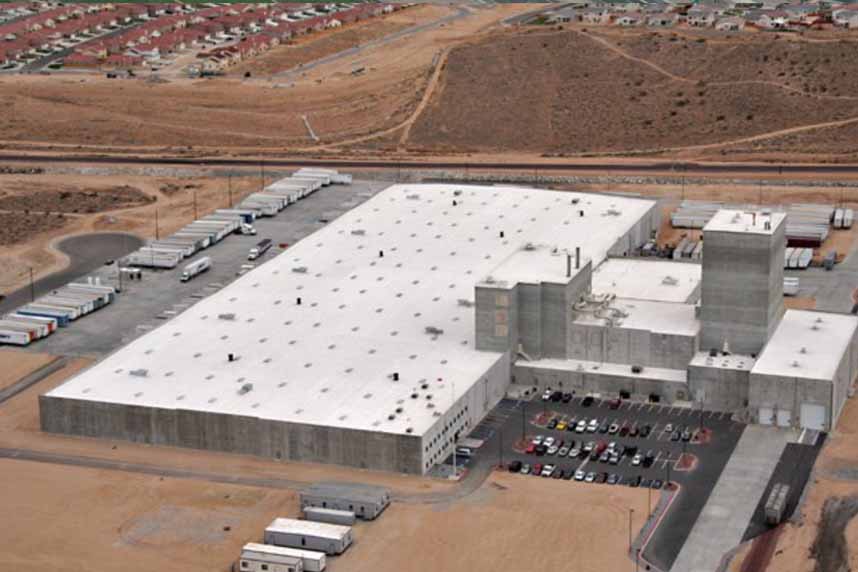

Aerial shot of an expansive manufacturing facility with tractor-trailers and a continuous SWD Urethane spray foam roof across multiple bays.
On-roof panoramic view across a vast SWD Urethane spray foam roof lined with HVAC evaporative coolers and skylights, mountains on the horizon.

Application Conditions:

Apply in ambient temperatures appropriate to your blend:

  • Winter: 45–65°F
  • Intermediate: 65–85°F
  • Summer: 80–115°F

Substrates must be clean and dry. Use high-pressure plural-component equipment with a minimum of 1000 psi dynamic pressure. Apply foam in ½″–1½″ passes to reach target thickness, ideally on the same day. Avoid spraying over surface moisture or damp substrates. Follow SWD prep and priming guidelines for specific materials.

Where It Works:

  • SPF roofing systems (new or re-roof)
  • Plywood, concrete, and metal decks
  • High-wind zones (up to 165 psf uplift resistance)
  • Areas requiring Class A/B fire-rated assemblies
  • LEED-conscious and Low GWP projects

Built for jobsite flexibility and long-term protection, QUIK-SHIELD® 155-3 brings you the performance of a premium spray foam roofing system—without compromising on environmental standards. It’s strong, efficient, and engineered to last.

Flat-roofed commercial building with urethane roofing and adjacent parking lot.

A Product That Reflects Our Values

QUIK-SHIELD® 155-3 is a direct extension of SWD’s promise to lead with innovation, sustainability, and results that hold up in the field. With strong building code approvals, a low environmental footprint, and a design that minimizes labor complexity, this system raises the bar for spray foam roofing.

Need Support or Have Questions?

Our technical team is just a call away. We’re with you from bid to build.

CALL: 888-380-2022
